third generation night vision

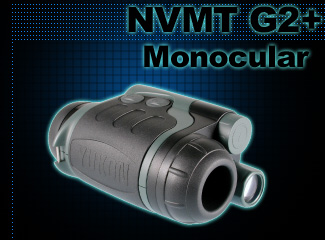

Yukon 24023 NVMT G2+ gen 2 plus Night Vision system

Type	Gen	Weight	Size	Lens	Mag
Mono	2+	.400kg	125x82x76mm	35mm f1.2	2.0x
Angle of View	IR Illuminator	Batteries	Stock	Range - (m)
30°	Built in	1XCR123R	In stock	.3-400m

Ultra-compact, lightweight, easy to use and comfortable to hold, the new NVMT is unique for a night scope in offering a tactile, suregrip plastic bodyshell and, for extra protection/grip, partial rubber armouring.

Currently the top of the range model, the NVMT G2+ features a 'commercial' grade* Gen 2+ Image Intensifier Tube (IIT). The NVMT has a built-in, powerful Infrared (IR) Illuminator for use in very low light/total darkness. Power for the scope and IR is provided by 1 x 3V Lithium CR123A battery (not supplied). A green LED next to the viewfinder indicates when the Image Intensifier Tube is switched on while a red LED indicates when the IR Illuminator is switched on.

A tripod socket is built-in as standard.

The NVMT G2+ is a very compact and lightweight Gen 2+ night vision monocular. It offers 2.0x image magnification and a very comfortable, long eye relief eyepiece with a wide 30° field of view.

A belt mountable case is included with all NVMT models.

* The NVMT G2+ is fitted with a 'commercial' grade Gen 2+ Image Intensifier Tube (IIT). This is an IIT that has failed to achieve Mil Spec rating. Primarily this will be due to lower than Mil Spec sensitivity, but will also be due to more spots/blemishes,chickenwire/sheer distortion than would be acceptable in a Mil Spec tube. However, none of these will afffect the usability or lifespan of the IIT. These factors are reflected in the price of the NVMT G2+ which should be less than half that of a Mil Spec design. The Gen 2+ IIT will have substantially better sensitivity than a Gen 1 or Gen 1+ IIT.

Item	Description	Price £	Price in US Dollars
COB24023	GEN2+ NVMT NIGHT VISION	£ 889.00	1742
cob29074	100mw infrared light	£ 70.05	137.30
cob29023	Digital camera adaptor kit	£ 17.63	34.55
cob29013	Univeral tripod kit	£ 17.63	34.55

cob29074

Optional Accessories
20085 - Waterproof Case
27021 - DSAS- Directional Sound Amplification System
29011 - Lightweight Tripod
29012 - Car Window Mount
29013 - Universal Tripod Kit
29023 - Digital Camera Adaptor for NVMT

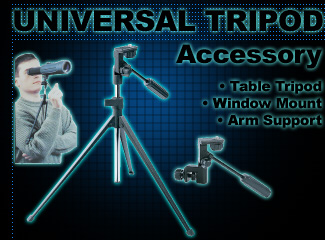

A combined kit of the 29011Tabletop Tripod and adaptor to convert it into a Car Window Mount. Supplied complete with an arm support strap that can be used in conjunction with the tripod to give extra support when used with high magnification scopes and binoculars.

Supplied with a pouch case.

Max. acceptable weight of a mounted device: 1kg
Tripod thread diameter: 1/4" Whitworth
Standard height: 280mm
Extended height: 420mm

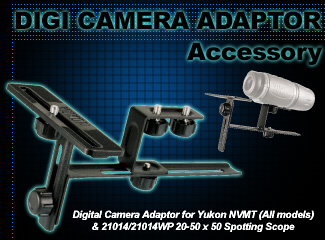

NVMT digital camera adaptor

Offers a simple effective way of attaching a compact digital camera to the Yukon NVMT night vision monocular.

With generous front/back, left/right and up/down adjustments, the unit allows easy positioning of a digital camera lens up to the eyepiece of the Yukon NVMT. The Digital Camera Adaptor attaches via the tripod threads ion the base of the night vision monocular. The unit can be attached to a tripod for maximum stability.

Item	Description	Price £	Price in US Dollars
COB24023	GEN2+ NVMT NIGHT VISION	£ 889.00	1742
cob29074	100mw infrared light	£ 70.05	137.30
cob29023	Digital camera adaptor kit	£ 17.63	34.55
cob29013	Univeral tripod kit	£ 17.63	34.55

cob29074

Optional high power 100mW IR Illuminator with mount for use with any NVMT night vision monocular. Fits into the lens cap retainer on the left of the bodyshell. Available in green only.

Supplied with both a standard directional hood and a honeycomb hood which offers shielding of the beam.

230x33x55mm, 230gm, 2xAA batteries required.

Cobra nite watch (night watch) sport

Professional night vision equipment for journalists, security consultants, police and armed forces. The nite watch is available in 4 tube generations, gen 2+, Supergen, Hypergen and gen 3.

Versatile night vision system available with adapters for 35mm cameras, cctv camera adapters, video camcorder adapters. Top quality image intensifier tubes, ultra compact and light weight night vision system, rugged, shockproof and compact.

Nite Watch P2000 series night vision

Available with an optional side pack. The side pack will take larger batteries and also improves the field of view from 34 deg to 42 deg because the 3xCR1 cell holder on the standard model restricts the eyepiece. The side pack also has a standard tripod mount.

Generation 2 - Usually an S-25 (extended red) photocathode (with photosensitivity of 240-400 uA/lm) with a microchannel plate
(MCP) to achieve gain. Normally uses fibre-optic inversion. Gen II tubes provide good performance in low light levels and exhibit
very low distortion making them well suited for use with video or still cameras. They are equipped with automatic gain control,
flash protection and feature edge-to-edge definition. Resolution in the centre varies between 30-35 Ip/mm.
Generation 2+ - Based on Gen 2 tube technology, but has enhanced photocathode sensitivity (typical photosensitivity of 500-
600+ uA/lm). Resolution in the centre varies between 35-45 Ip/mm.

SuperGen - Based on Gen 2 tube technology, but with further enhanced photocathode sensitivity (photosensitivity of 600-700+
uA/lm). Resolution in the centre varies between 45-60 Ip/mm.

To increase the magnification of the P2000 units they can be supplied with an additional lens.

Cobra nite watch (night watch) sport

Nite Watch P2000 series night vision

THIRD GENERATION NIGHT VISION EQUIPMENT
