Cobra Night Vision Bioculars

Ranger night vision biocular

Ranger night vision

With a rugged all-metal bodyshell, the Ranger night vision is a top quality biocular using internally focused multi-coated optics and a Gen 2 tube with 25mm MCP. The panoramic eyepiece gives binocular vision and can be used wearing most spectacles. Features include automatic brightness control, a built-in manual gain control and Bright Point Protection. The powerful built-in 75mW Infrared Illuminator has 3 power settings and a variable beam with power being supplied by the scopes batteries. A tripod socket is built in to the right side of the body just forward of the hand strap. Supplied with handstrap & semi-rigid case.

Optional Accessories
7017 - Monocular Eyepiece


RANGER™
Gen Dimensions Weight FOV Lens
2 295 x 105 x 85mm 1400g 10° 100mm f1.5
line
Mag Battery MRVR I Red Case
3.1x 2 x 1.5v Alkaline AA/MN1500/LR6 8-450m Yes Yes

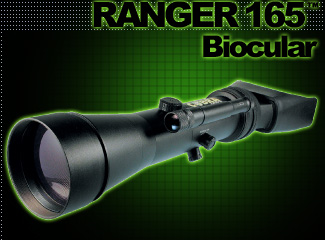

Ranger 165 night vision biocular

Ranger 165<sup>™</sup>

Based on the 2201 Ranger™, the Ranger 165™ is fitted with a high quality 165mm f2.0 lens offering 5.1x magnification and a field of view of 7°. The Ranger 165™ utilises a Gen 2 tube with a 25mm MCP. Power is provided by 2 x 1.5V Alkaline AA/MN1500 batteries (not supplied). The powerful built-in 75mW Infrared Illuminator has 3 power settings and a variable beam with power being supplied by the scopes batteries. Features include automatic brightness control, a built-in manual gain control and Bright Point Protection. A tripod socket is built in to the right side of the body just forward of the hand strap. An optional monocular eyepiece (with camera adaptor) boosts magnification to 7.3x.

Optional Accessories
7017 - Monocular Eyepiece


RANGER 165™
Gen Dimensions Weight FOV Lens
2 410 x 105 x 95mm 1600g 165mm f2.0
line
Mag Battery MRVR I Red Case
5.1x 2 x 1.5V AA/MN1500 20-550m Yes Yes

Tornado 100 Biocular Gen 2

Tornado 100<sup>™</sup>

Compact, lightweight Gen 2 medium magnification biocular.
Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.
A small, short-range IR illuminator is built-in.
Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be fitted with the 7015 165mm f2.0 telephoto lens to offer 6.3x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 100™
Gen Dimensions Weight FOV Lens
2 295 x 105 x 85mm 1000g 10° 100mm f1.5
line
Mag Battery MRVR I Red Case
4.0x 2 x 1.5V Alkaline AA/MN1500 2-500m Yes Yes

Tornado 165 Biocular Gen 2

Tornado 165<sup>™</sup>

Compact, lightweight Gen 2 high magnification biocular.
Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.
A small, short-range IR illuminator is built-in.
Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be fitted with the 7013 100mm f1.5 telephoto lens to offer 4.0x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).
Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 165™
Gen Dimensions Weight FOV Lens
2 410 x 105 x 95mm 1200g 6.5° 165mm f2.0
line
Mag Battery MRVR I Red Case
6.3 2 x 1.5V Alkaline AA/MN1500/E6 3-600m Yes Yes

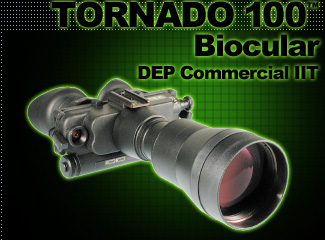

Tornado 100 DEP Commercial

Tornado 100<sup>™</sup> (DEP Commercial)

Compact, lightweight Gen 2 medium magnification biocular. Fitted with a Photonis-DEP Commercial Grade Image Intensifier Tube.

Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.

A small, short-range IR illuminator is built-in.

Optional high power IR illuminators improve usable range in very low light/total darkness.

The unit can be fitted with the 7015 165mm f2.0 telephoto lens to offer 6.3x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 100™ (DEP COMMERCIAL)
Gen Dimensions Weight FOV Lens
2 295 x 105 x 85mm 1000g 10° 26mm f1.2
line
Mag Battery MRVR I Red Case
4.0x 2 x 1.5V Alkaline AA/MN1500 2-500m Yes Yes

Tornado 100 DEP Gen 2 Commercial

Tornado 100<sup>™</sup> (DEP Gen 2+)

Compact, lightweight Gen 2+ medium magnification biocular. Fitted with a Photonis-DEP MilSpec Gen 2+ Image Intensifier Tube.
Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.
A small, short-range IR illuminator is built-in.
Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be fitted with the 7015 165mm f2.0 telephoto lens to offer 6.3x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 100™ (DEP GEN 2+)
Gen Dimensions Weight FOV Lens
2+ 295 x 105 x 85mm 1000g 10° 26mm f1.2
line
Mag Battery MRVR I Red Case
4.0x 2 x 1.5V Alkaline AA/MN1500 2-500m Yes Yes

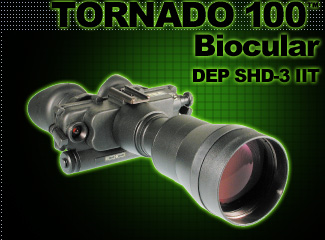

Tornado 100 DEP SHD-3 night vision

Tornado 100<sup>™</sup> (DEP SHD-3)

Compact, lightweight SuperGen2 medium magnification biocular. Fitted with a Photonis-DEP MilSpec SHD-3 Image Intensifier Tube.
Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.
A small, short-range IR illuminator is built-in.
Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be fitted with the 7015 165mm f2.0 telephoto lens to offer 6.3x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 100™ (DEP SHD-3)
Gen Dimensions Weight FOV Lens
SuperGen 295 x 105 x 85mm 1000g 10° 26mm f1.2
line
Mag Battery MRVR I Red Case
4.0x 2 x 1.5V Alkaline AA/MN1500 2-500m Yes Yes

Tornado 100 DEP XD-4 IIT

Tornado 100<sup>™</sup> (DEP XD-4)

Compact, lightweight HyperGen medium magnification biocular. Fitted with a Photonis-DEP MilSpec XD-4 Image Intensifier Tube.
Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.
A small, short-range IR illuminator is built-in.
Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be fitted with the 7015 165mm f2.0 telephoto lens to offer 6.3x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 100™ (DEP XD-4)
Gen Dimensions Weight FOV Lens
HyperGen 295 x 105 x 85mm 1000g 10° 26mm f1.2
line
Mag Battery MRVR I Red Case
4.0x 2 x 1.5V Alkaline AA/MN1500 2-500m Yes Yes

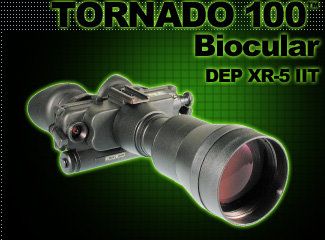

Tornado 100 DEP XR-5 IIT

Tornado 100<sup>™</sup> (DEP XR-5)

Compact, lightweight HyperGen medium magnification biocular. Fitted with a Photonis-DEP MilSpec XR-5 Auto-Gating Image Intensifier Tube.
Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.
A small, short-range IR illuminator is built-in.
Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be fitted with the 7015 165mm f2.0 telephoto lens to offer 6.3x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 100™ (DEP XR-5)
Gen Dimensions Weight FOV Lens
HyperGen 295 x 105 x 85mm 1000g 10° 26mm f1.2
line
Mag Battery MRVR I Red Case
4.0x 2 x 1.5V Alkaline AA/MN1500 2-500m Yes Yes

Tornado 165 DEP Commercial

Tornado 165<sup>™</sup> (DEP Commercial)

Compact, lightweight Gen 2 high magnification biocular. Fitted with a Photonis-DEP Commercial Grade Image Intensifier Tube.
Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.
A small, short-range IR illuminator is built-in.
Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be fitted with the 7013 100mm f1.5 telephoto lens to offer 4.0x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO™ (DEP COMMERCIAL)
Gen Dimensions Weight FOV Lens
2 410 x 105 x 95mm 1200g 6.5° 26mmf1.2
line
Mag Battery MRVR I Red Case
6.3x 2 x 1.5V Alkaline AA/MN1500 3-600m Yes Yes

Tornado DEP Gen2+

Tornado 165<sup>™</sup> (DEP Gen 2+)

Compact, lightweight Gen 2+ high magnification biocular. Fitted with a Photonis-DEP MilSpec Gen 2+ Image Intensifier Tube.
Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.
A small, short-range IR illuminator is built-in.
Optional high power IR illuminators improve usable range in very low light/total darkness.
The unit can be fitted with the 7013 100mm f1.5 telephoto lens to offer 4.0x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7015 - 165mm f2.0 Lens
7028 - IR Tele Lens
7046 - Headmount



TORNADO 165™ (DEP GEN 2+)
Gen Dimensions Weight FOV Lens
2+ 410 x 105 x 95mm 1200g 6.5° 26mm f1.2
line
Mag Battery MRVR I Red Case
6.3x 2 x 1.5V Alkaline AA/MN1500 3-600m Yes Yes

Tornado 165 DEP SHD-3 IIT

Tornado 165<sup>™</sup> (DEP SHD-3)

Compact, lightweight SuperGen high magnification biocular. Fitted with a Photonis-DEP MilSpec SHD-3 Image Intensifier Tube.

Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.

A small, short-range IR illuminator is built-in.

Optional high power IR illuminators improve usable range in very low light/total darkness.

The unit can be fitted with the 7013 100mm f1.5 telephoto lens to offer 4.0x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 165™ (DEP SHD-3)
Gen Dimensions Weight FOV Lens
SuperGen 410 x 105 x 95mm 1200g 6.5° 26mm f1.2
line
Mag Battery MRVR I Red Case
6.3x 2 x 1.5V Alkaline AA/MN1500 3-750m Yes Yes

Tornado 165 DEP XD-4 IIT

Tornado 165<sup>™</sup> (DEP XD-4)

Compact, lightweight HyperGen high magnification biocular. Fitted with a Photonis-DEP MilSpec XD-4 Image Intensifier Tube.

Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.

A small, short-range IR illuminator is built-in.

Optional high power IR illuminators improve usable range in very low light/total darkness.

The unit can be fitted with the 7013 100mm f1.5 telephoto lens to offer 4.0x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 165™ (DEP XD-4)
Gen Dimensions Weight FOV Lens
HyperGen 410 x 105 x 95mm 1200g 6.5° 26mm f1.2
line
Mag Battery MRVR I Red Case
6.3x 2 x 1.5V Alkaline AA/MN1500 3-800m Yes Yes

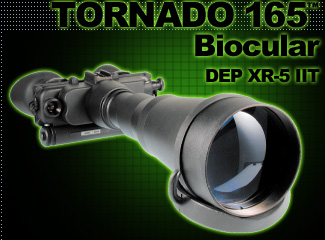

Tornado 165 DEP XR-5 IIT

Tornado 165<sup>™</sup> (DEP XR-5)

Compact, lightweight HyperGen high magnification biocular. Fitted with a Photonis-DEP MilSpec XR-5 Auto-Gating Image Intensifier Tube.

Features comfortable, ergonomic eyecups and adjustable interpupillary movement eyepieces.

A small, short-range IR illuminator is built-in.

Optional high power IR illuminators improve usable range in very low light/total darkness.

The unit can be fitted with the 7013 100mm f1.5 telephoto lens to offer 4.0x magnification or with the 7046 Headmount & 7033 26mm f1.2 lens to convert the unit in to a 1.0x (parity) night vision goggle (NVG).

Optional Accessories
7011 - 150mW IR Illuminator
7012 - 75mW IR Illuminator
7013 - 100mm f1.5 Lens
7028 - IR Tele Lens
7046 - Headmount


TORNADO 165™ (DEP XR-5)
Gen Dimensions Weight FOV Lens
HyperGen 410 x 105 x 95mm 1200g 6.5° 26mm f1.2
line
Mag Battery MRVR I Red Case
6.3x 2 x 1.5V Alkaline AA/MN1500 3-800m Yes Yes

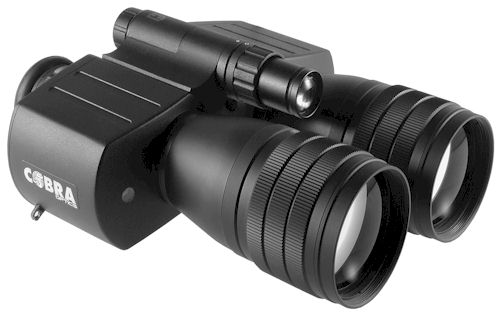

Cobra Night Vision Equipment Meteor Binoculars
Binocular 1 1.1kg 200x164x68mm 80mm f1.6 3.6x
Angle of View IR Illuminator Batteries Stock Range - (m)
15° Built In 1xCR123A In stock 3 - 140

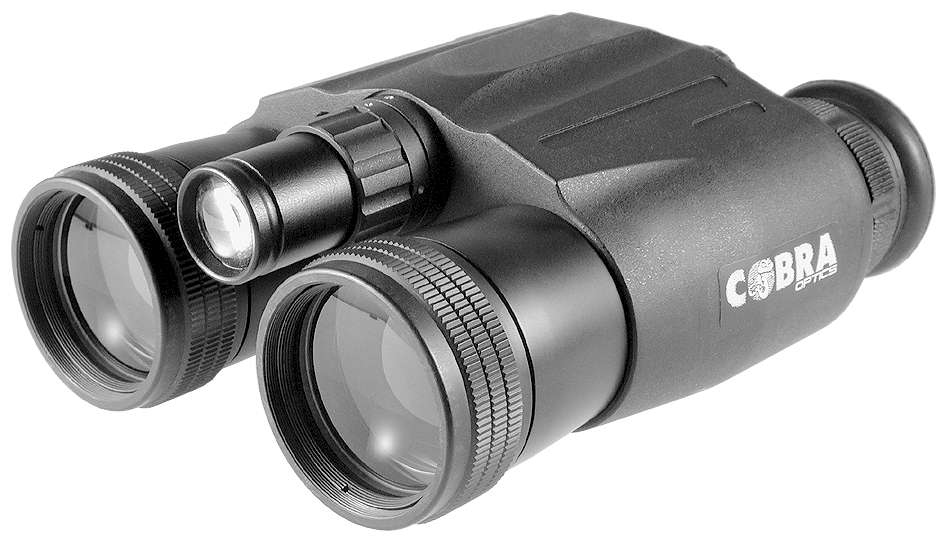

Cobra Night Vision 1027 Nebula Pro


Binocular 1 .7kg 158x113x58mm 50mm f1.5 2.3x
Angle of View IR Illuminator Batteries Stock Range - (m)
18° Built In 2xLR1 In stock .3-90m




Cobra Storm Pro Night Vision Goggles
Goggle 1 .82kg 137x113x58mm 26mm f1.4 1.0x
Angle of View IR Illuminator Batteries Stock Range - (m)
40° Built In 2xLR1/MN9100 In stock 0.2 - 3.0


Optional 2x80mm lens F1.7 that will increase the magnification to 3.6x





Cobra 1303 Whirl Wind  Night Vision Goggles
Goggle 1 .93kg 125x150x83mm 26mm f1.4 1.0x
Angle of View IR Illuminator Batteries Stock Range - (m)
40° Built in 2xLR1/MN9100 In stock 0.2 - 3.0


Optional 2x80mm lens F1.7 that will increase the magnification to 3.7





Cobra 2301 Tornado 2nd gen  Night Vision Goggles
Goggle 2 .7kg 172x148x80mm 26mm f1.1 1.0x
Angle of View IR Illuminator Batteries Stock Range - (m)
40° Built in 2xLR1/MN9100 In stock 1-150


Optional 100mm F1.5 lens, gives 3.9x magnification

Optional 165mm F2 lens, gives 6.3x magnification





Cobra 2301 Vortex  gen 2 plus  Night Vision Goggles
Goggle 2+ .68kg 161x152x76mm 35mm f1.2 1.0x
Angle of View IR Illuminator Batteries Stock Range - (m)
40° Built in 2xLR1/MN9100 In stock 1-150


RANGER 2201 2ND GENERATION NIGHT VISION


A compact and lightweight, all metal bodyshell Gen 2 biocular fitted with a panoramic eyepiece. The Ranger utilises a Gen 2 tube with a 25mm MCP. Fitted with a high quality internally-focused 100mm f1.5 lens, it offers 3.1x magnification and a 10° field of view. Power is provided by 2 x 1.5V Alkaline AA/MN1500 batteries (not supplied). The powerful built-in 75mW Infrared Illuminator has 3 power settings and a variable beam with power being supplied by the scopes batteries. Features include automatic brightness control, a built-in manual gain control and Bright Point Protection. A tripod socket is built in to the right side of the body just forward of the hand strap. An optional monocular eyepiece (with SLR/Video camera adaptor) boosts magnification to 4.4x. One Year Warranty  Case included

  • Magnification: 3.1x

  • Generation: 2

  • Objective size (mm): 100 / f1.5

  • Field of view : 10°

  • Range (m): 5.0 - 450

  • Batteries: 2 x AA/MN1500

  • Weight (kg): 1.1

  • Size (mm): 295 x 105 x 85

  • Supplied with pouch case







2202 RANGER 165  2ND GENERATION NIGHT VISION SYSTEM


Based on the 2201 Ranger™, the Ranger 165™ is fitted with a high quality 165mm f2.0 lens offering 5.1x magnification and a field of view of 7°. The Ranger 165™ utilises a Gen 2 tube with a 25mm MCP. Power is provided by 2 x 1.5V Alkaline AA/MN1500 batteries (not supplied). The powerful built-in 75mW Infrared Illuminator has 3 power settings and a variable beam with power being supplied by the scopes batteries. Features include automatic brightness control, a built-in manual gain control and Bright Point Protection. A tripod socket is built in to the right side of the body just forward of the hand strap. An optional monocular eyepiece (with SLR camera/video camera adaptor) boosts magnification to 7.3x.
One Year Warranty  Case included

  • Magnification: 5.1x

  • Generation: 2

  • Objective size (mm): 165 / f2

  • Field of view : 7°

  • Range (m): 10 - 550

  • Batteries: 2 x AA/MN1500

  • Weight (kg): 1.2

  • Size (mm): 310 x 115 x 60

  • Supplied with pouch case







Cobra 75mw and 150mw  IR Illuminators

irsource.jpg (34472 bytes) A high power IR illuminator with 75mw or 150mw  IR diode designed to attach to the Tracker, Tracker 100, Pioneer, Pioneer 100, Sabre and Scimitar. Can also be hand held. 805nm output, variable beam and 3 power settings.



Cobra Optics Night Vision Equipment professional night vision equipment, the range includes monocular, binocular,  biocular, goggle (NVG) and weapon scope designs. See in complete darknessIntensifier tubes available include Gen 1, Gen 1+, Gen 2, Gen 2+, SuperGen, HyperGen and Gen 3.

Aids for disabled people inc mobility, paediatric and comfort



a1villas.co.uk 13a.co.uk a1 cd.co.uk a1guns.co.uk a1solar.co.uk a1webcam.co.uk airpistol.co.uk allwinds.co.uk austin-7-bits.co.uk austin7bits.co.uk basic-nutrition.co.uk basicnutrition.co.uk beedies.co.uk bidi.co.uk biri.co.uk blu-seal.co.uk bullgroup.co.uk bullmall.co.uk bullnet.co.uk bullybeef.co.uk cctvstuff.co.uk century-lighting.co.uk charter-me.co.uk charter-this.co.uk charterthis.co.uk cobra-optics.co.uk cowes-boat-charter.co.uk cowesboatcharter.co.uk easy-sales-pro.co.uk fagpack.co.uk fishpaste.co.uk flowmiser.co.uk flybird.co.uk forum-france.co.uk forum-spain.co.uk forumfrance.co.uk forumspain.co.uk france-forum.co.uk franceforum.co.uk gameadvice.co.uk gamo-guns.co.uk gamo.co.uk gissowatt.co.uk henryvac.co.uk herbal-kick.co.uk holswap.co.uk investors-club.co.uk jims-rings.co.uk lockpicks.co.uk magnofuel.co.uk mamodspares.co.uk manor-ware.co.uk manorware.co.uk marc-james.co.uk nationaltoners.co.uk officebits.co.uk paintguns.co.uk payment-page.co.uk pccorner.co.uk pinkjets.co.uk prizefinder.co.uk quemex.co.uk radargun.co.uk radarguns.co.uk ragabone.co.uk scratchings.co.uk seemans.co.uk seemens.co.uk sicce.co.uk siemen.co.uk siemenssolar.co.uk slips.co.uk solent-charter.co.uk southord.co.uk spain-forum.co.uk spainforum.co.uk spanish-golf-villa.co.uk stickon.co.uk stirling-engines.co.uk sunnycott.co.uk sunnycottcaravanpark.co.uk</ a> sussexpad.co.uk tinplatetoys.co.uk toypen.co.uk traction-engine.co.uk travellers-joy.co.uk urlsales.co.uk velosolex.co.uk veronica-kits.co.uk viking-ebikes.co.uk vikingbikes.co.uk web-camera.co.uk wight-boat-hire.co.uk wight-charter.co.uk wightboathire.co.uk wightinvestments.co.uk wilesco-steam.co.uk xbows.co.uk yellowmaps.co.uk bullmall.com seemens.com sexy-pills.com health-pills.com bullelec
